Mastra 02 Agent的更多使用

多层级Agent

使用Agent嵌套Agent的形式来运行

1. 创建一个编写博客内容的Tool，内部调用编写博客的Agent进行博客内容生成
2. 创建一个文章内容润色的Tool，内部调用润色文章的Agent进行博客内容润色
3. 创建一个发布博客的Agent，给其加入上述的两个Tool，然后prompt中让其使用Tool，先生成内容，再润色内容

import {createOpenAI} from "@ai-sdk/openai";
import {Agent} from "@mastra/core/agent";
import {createTool} from "@mastra/core/tools";
import {z} from "zod";

//创建大模型实例
const llmProvider = createOpenAI({
    apiKey: process.env.OPENAI_API_KEY,
    baseURL: process.env.OPENAI_BASE_URL,
})

const llm = llmProvider('gpt-4o-2024-11-20')


//编写博客内容的Agent
const copywriterAgent = new Agent({
    name: 'Copywriter',
    instructions: "你是一个广告文字撰写人，写博客文章副本。",
    model: llm,
})

//编写博客内容的工具，内部使用编写博客内容的Agent来生成关于对应主题的博客内容
const copywriterTool = createTool({
    id: 'copywriter-agent',
    description: "调用Copywriter Agent撰写博文文案。",
    inputSchema: z.object({
        topic: z.string().describe('博客标题'),
    }),
    outputSchema: z.object({
        copy: z.string().describe('博客副本')
    }),
    execute: async ({context}) => {
        const result = await copywriterAgent.generate(`撰写一篇关于${context.topic}的博客文章`)
        return {
            copy: result.text
        }
    }
})

//进行内容细化的Agent
const editorAgent = new Agent({
    name: 'Editor',
    instructions: "你是编辑博客文章副本的编辑代理。",
    model: llm
})

//创建一个编辑Tool，内部调用editorAgent来对内容进行细化和润色
const editorTool = createTool({
    id: 'editor-agent',
    description: '调用Editor Agent来编辑博客文章副本。',
    inputSchema: z.object({
        copy: z.string().describe("博客文章内容"),
    }),
    outputSchema: z.object({
        copy: z.string().describe("已编辑过的博客文章副本")
    }),
    execute: async ({ context }) => {
        const result = await editorAgent.generate(`编辑以下博客文章仅返回编辑后的副本：${context.copy}`)
        return { copy: result.text }
    }
})


//进行文章发布的Agent，给其设置工作流程，先使用copywriterAgent生成博客内容，再使用editorAgent进行内容更新润色
const publisherAgent = new Agent({
    name: 'publisherAgent',
    instructions: "您是一位出版Agent，首先联系copywriterAgent撰写关于特定主题的博客文章副本，然后联系editorAgent编辑副本。只需返回最终编辑后的副本。",
    model: llm,
    tools: {
        copywriterTool,
        editorTool
    }
})


export default publisherAgent

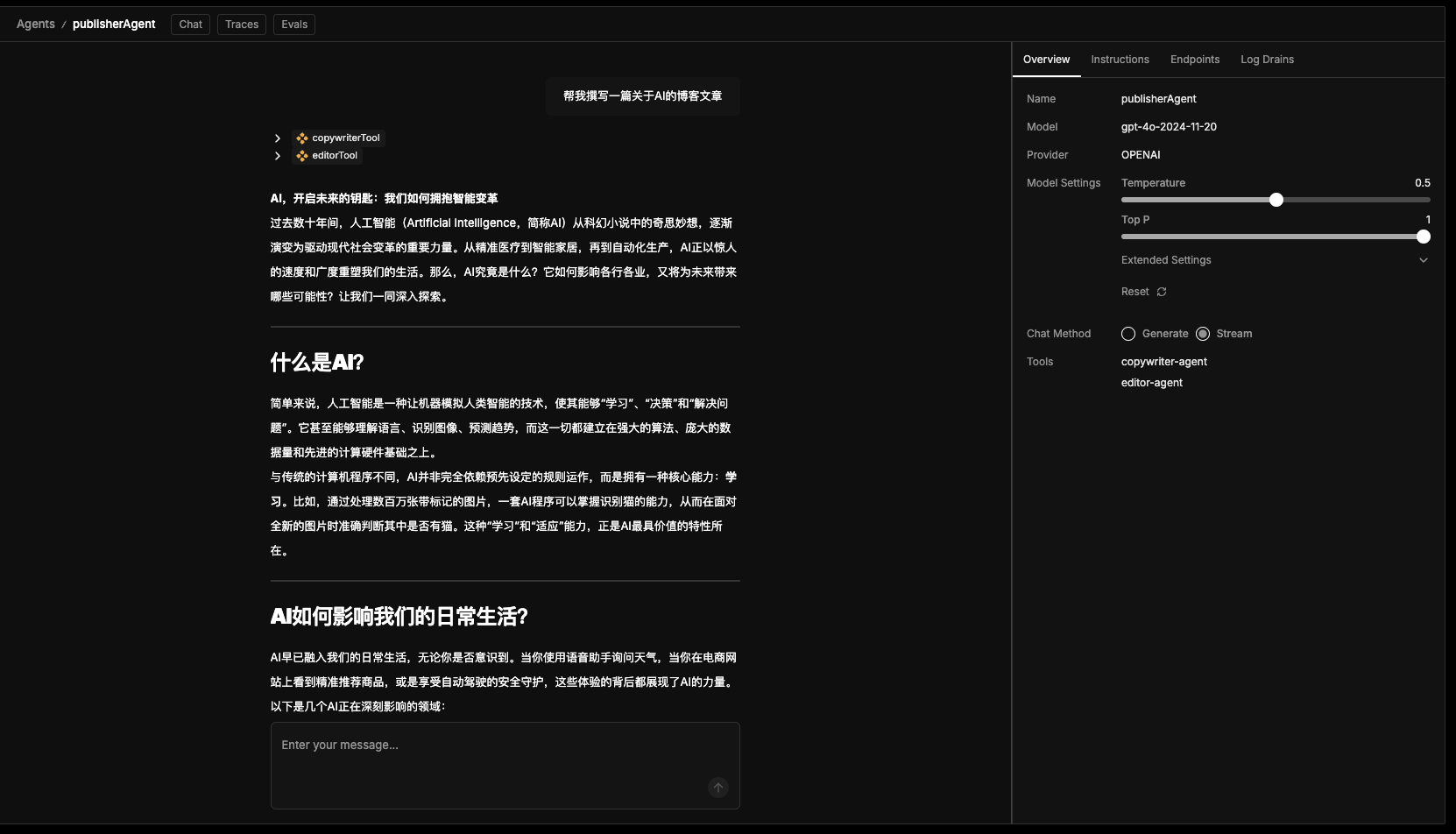

这样就完成了一个二级的Agent层次结构。

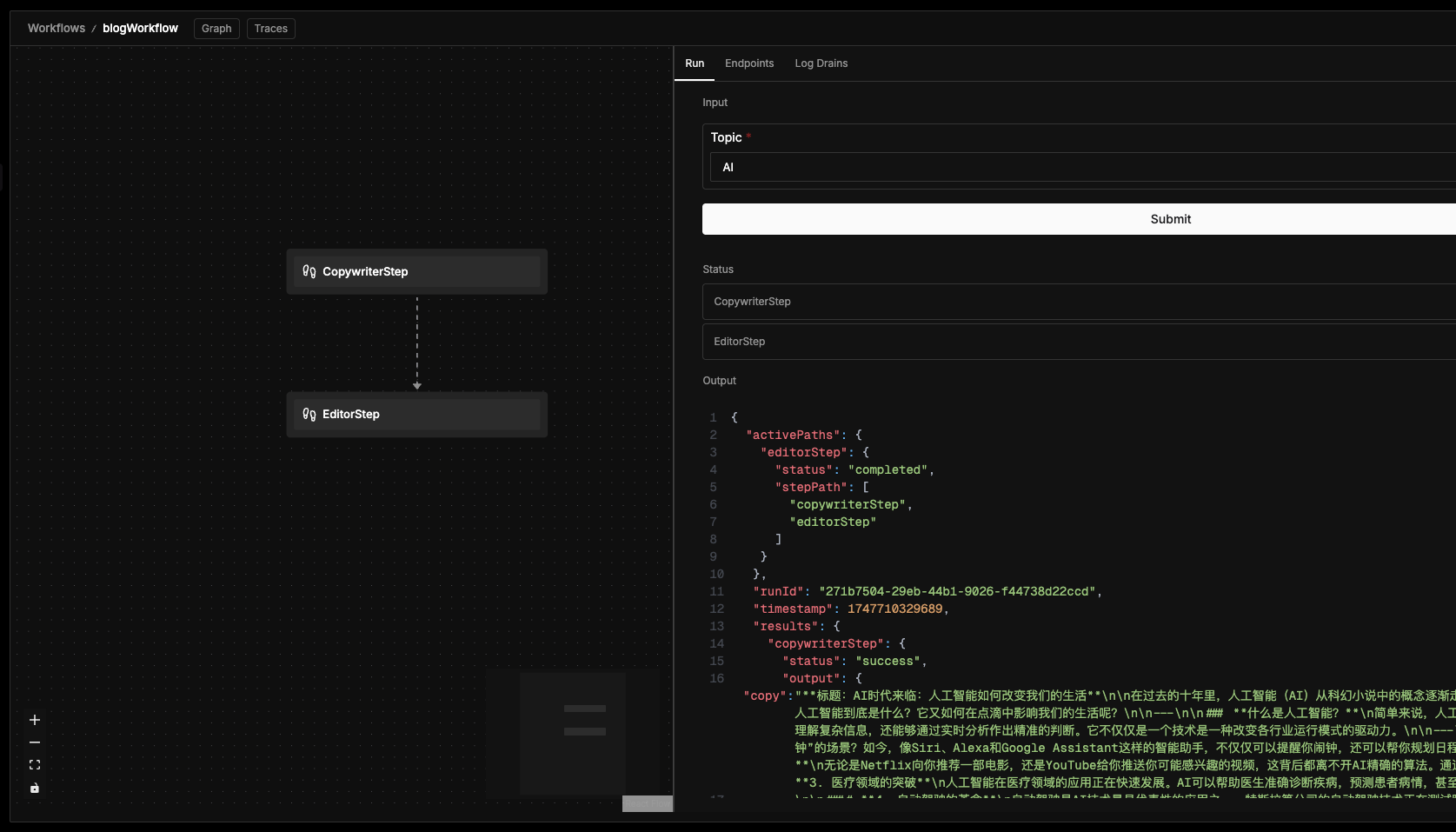

多个Agent组成的工作流

将上面例子中的publisherAgent换成workflow，就能让其以一个固定的顺序进行工作

import {createOpenAI} from "@ai-sdk/openai";
import {Agent} from "@mastra/core/agent";
import {Step, Workflow} from "@mastra/core/workflows";
import {z} from "zod";

const llmProvider = createOpenAI({
    apiKey: process.env.OPENAI_API_KEY,
    baseURL: process.env.OPENAI_BASE_URL,
})

const llm = llmProvider('gpt-4o-2024-11-20')


const copywriterAgent = new Agent({
    name: 'Copywriter',
    instructions: '你是一个广告文字撰写人，写博客文章副本。',
    model: llm,
})

const copywriterStep = new Step({
    id: 'copywriterStep',
    execute: async ({context}) => {
        //输入参数从triggerData中得到
        if (!context?.triggerData?.topic) {
            throw new Error("Topic not found in trigger data")
        }

        const result = await copywriterAgent.generate(`撰写一篇关于${context.triggerData.topic}的博客`)
        return {
            copy: result.text
        }
    }
})

const editorAgent = new Agent({
    name: 'Editor',
    instructions: "你是一名编辑，你可以对博客文章内容进行润色修改",
    model: llm,
})

const editorStep = new Step({
    id: 'editorStep',
    execute: async ({context}) => {
        //输入参数使用getStepResult获取
        const copy = context.getStepResult<{copy: string}>('copywriterStep')?.copy
        if (!copy) {
            throw new Error('Blog copy content not found in copywriter step')
        }
        const result = await editorAgent.generate(`将下面这篇博客内容进行润色修改，只需要返回修改过后的文章即可: ${copy}`)
        return {
            copy: result
        }
    }
})

const blogWorkflow = new Workflow({
    name: 'blogWorkflow',
    triggerSchema: z.object({
        topic: z.string(),
    })
}).step(copywriterStep).then(editorStep)  //设置工作流为先编写内容，再润色

blogWorkflow.commit()

export default blogWorkflow

Bird Checker 让Agent对图像进行识别

import {createOpenAI} from "@ai-sdk/openai";
import {Agent} from "@mastra/core/agent";
import {z} from "zod";

const llmProvider = createOpenAI({
    apiKey: process.env.OPENAI_API_KEY,
    baseURL: process.env.OPENAI_BASE_URL,
})

const llm = llmProvider('gpt-4o-2024-11-20')


export type Image = {
    alt_description: string
    urls: {
        regular: string
        raw: string
    }
    user: {
        first_name: string
        links: {
            html: string
        }
    }
}

export type ImageResponse<T, K> =
    | {
        ok: true
        data: T
      }
    | {
        ok: false
        error: K
      }

//获取一张随机的图片
const getRandomImage = async ({ query }: {query: string}) : Promise<ImageResponse<Image, string>> => {
    const page = Math.floor(Math.random() * 20)
    const order_by = Math.random() < 0.5 ? "relevant" : "latest"

    try {
        const res = await fetch(
            `https://api.unsplash.com/search/photos?query=${query}&page=${page}&order_by=${order_by}`,
            {
                method: 'GET',
                headers: {
                    Authorization: `Client-ID ${process.env.UNSPLASH_ACCESS_KEY}`,
                    'Accept-Version': 'v1'
                },
                cache: 'no-store'
            }
        )

        if (!res.ok) {
            return {
                ok: false,
                error: 'Failed to fetch image'
            }
        }

        const data = (await res.json()) as {
            results: Array<Image>
        }

        const randomNo = Math.floor(Math.random() * data.results.length)

        return {
            ok: true,
            data: data.results[randomNo] as Image
        }
    }catch (err) {
        return {
            ok: false,
            error: "Error fetching image"
        }
    }
}


//创建一个识别鸟类图片的Agent
const instructions = `
    你可以查看图像并确定它是否是一只鸟。
    你也可以弄清楚这只鸟的种类和照片是在哪里拍的。
`

export const birdCheckerAgent = new Agent({
    name: 'Bird Checker',
    instructions,
    model: llm
})


const queries: string[] = ["wildlife", "feathers", "flying", "birds"]
const randomQuery = queries[Math.floor(Math.random() * queries.length)]

const imageResponse = await getRandomImage({ query: randomQuery })

if (!imageResponse.ok) {
    console.log("Error fetching image", imageResponse.error)
    process.exit(1)
}


console.log("Image URL:", imageResponse.data.urls.regular)


//传入图片，如果是鸟类的话，返回鸟的学名以及这张照片的位置
const response = await birdCheckerAgent.generate(
    [
        {
            role: "user",
            content: [
                {
                    type: "image",
                    image: new URL(imageResponse.data.urls.regular)
                },
                {
                    type: "text",
                    text: "查看这张图片，让我知道它是否是一只鸟，以及这只鸟的学名，不需要任何解释。也可以用一两个高中生可以理解的短句来总结这张照片的位置"
                }
            ]
        }
    ],
    {
        output: z.object({
            bird: z.boolean(),
            species: z.string(),
            location: z.string()
        })
    }
)

console.log('Result', response)
